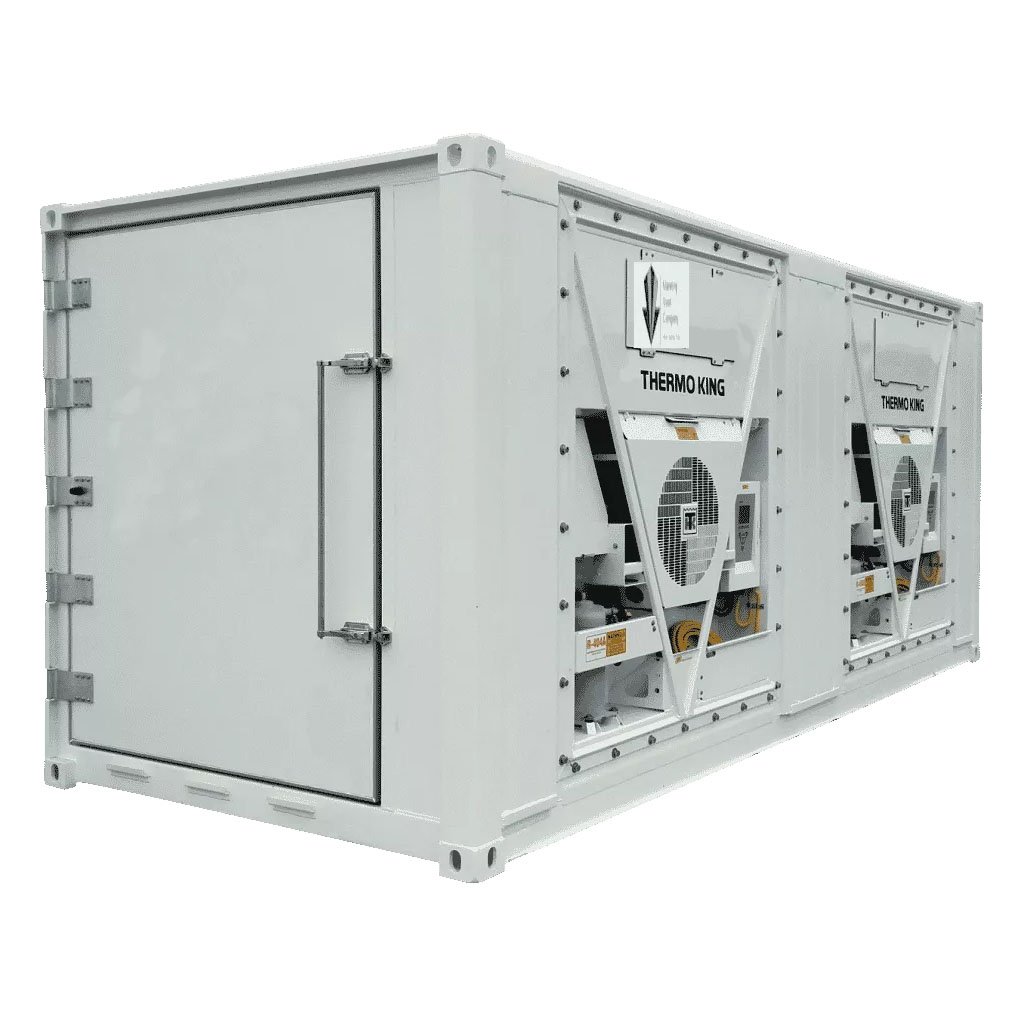

This 20ft (6.10 m) blast freezer container holds temperatures from -40°F to 70°F and runs on a 460V or 230V three phase supply. Heavy insulation across the roof, side walls, door panels and floor keeps the 23.8 m³ (841 cu.ft) internal capacity stable, which suits rapid freezing and long-term frozen storage.
Key Features
- Temperature range of -40°F to 70°F
- 460V / 230V three phase electrical supply
- Internal capacity of 23.8 m³ (841 cu.ft)
- Insulated roof, side walls, door panels and floor
- Rated heat leakage and air leakage values quoted below
- Max payload of 20,550 kg (45,310 lb)
Specifications
| Internal capacity | 23.8 m³ (841 cu.ft) |
|---|---|

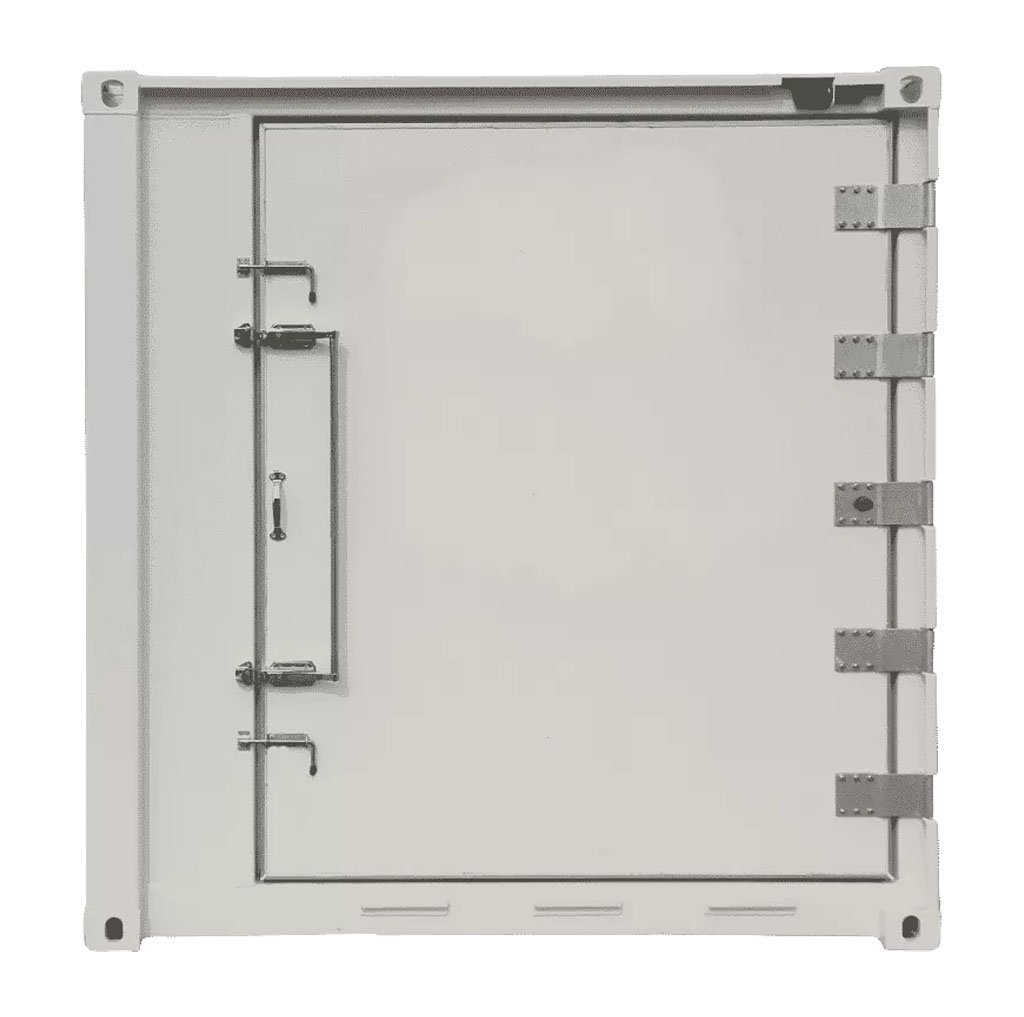

| Door opening width | 1,737 mm 0/-5 mm (5ft 8 25/64in) |
| Door opening height | 2,232 mm 0/-5 mm (7ft 3 7/8in) |
| Cargo access height | 2,232 mm 0/-5 mm (7ft 3 7/8in) |
| Max gross weight | 24,000 kg (52,910 lb) |
| Tare weight | 2,710 kg (5,980 lb) |
| Tare weight (incl. unit, 740 kg) | 3,450 kg (7,600 lb) |
| Max payload | 20,550 kg (45,310 lb) |
| Insulation – roof | 90 mm at 40 kg/m³ |
| Insulation – side walls | 65 mm at 45–50 kg/m³ |
| Insulation – door panels | 81 mm at 45–50 kg/m³ |
| Insulation – floor | 101/51 mm at 45–50 kg/m³ |
| Heat leakage value | Umax = 30 kcal/deg.C.hr at a mean wall temperature of 293K (20 °C) |
| Max air leakage value | Qmax = 14 m³/hr (including reefer unit, max 0.5 m³/h), measured at 250 +/-10 Pa |
Delivered anywhere in Australia for a flat $350, typically within 7–10 days.
